Mini Taper Type FBT Fiber Optic Splitter 1*2 With 1.5 Meter Length

Product Categories
H-LIN INTERNATIONAL (HK) LIMITED
Contact Now

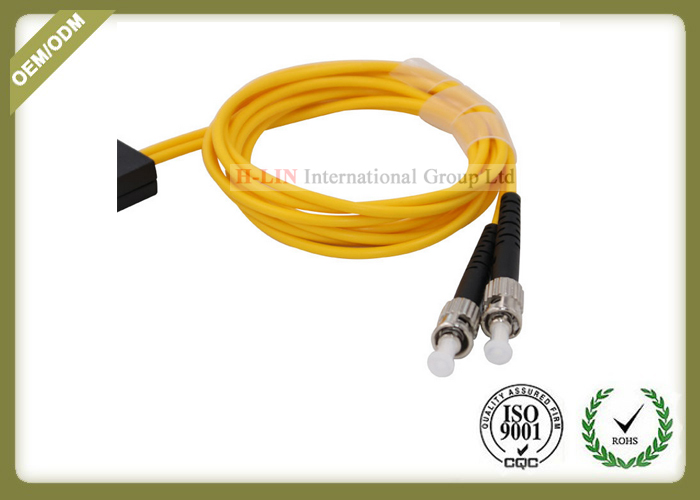

Mini Taper Type FBT Fiber Optic Splitter 1*2 With 1.5 Meter Length

  • 1
  • 2
  • 3

Brand Name : H-LIN

Model Number : Taper S

Certification : CE/ROHS/IOS9001

Place of Origin : Shenzhen China

MOQ : 2 Piece/Pieces

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300 Piece/Pieces per day

Delivery Time : 3~5 working days after payment

Packaging Details : 1pcs per plastic box, or 2pcs a plastic box

Fiber Type : Singlemode

Connector : ST/UPC

Material : ABS

Operating Temperature (℃) : -40~85

Length : 1~2meter

Fiber size : 0.9mm,2.0mm or 3.0mm

Contact Now

Taper type FBT splitte 1 to 2 way with ST/UPC Connector

Specification

Parameter 1x2
Operating Wavelength (nm) 1310/1550
Operating bandwidth (nm) ±40
Grade P A
Insert Loss(dB)
Coupling ratio		 1/99 ≤22.5/0.25 ≤23.5/0.35
2/98 ≤18.8/0.3 ≤19.5/0.4
3/97 ≤17.0/0.35 ≤17.8/0.45
5/95 ≤14.6/0.4 ≤15.5/0.5
10/90 ≤11.2/0.75 ≤12.0/0.8
20/80 ≤7.9/1.3 ≤8.4/1.4
30/70 ≤6.0/1.9 ≤6.3/2.1
40/60 ≤4.7/2.7 ≤4.9/2.9
50/50 ≤3.6 ≤3.8
Excess Loss(dB) 0.07 0.1
PDL(dB) ≤0.15 ≤0.20
Return Loss(dB) >50
Directivity(dB) ≥55
Operating Temperature(ºC) -40~85
Storage Temperature(ºC)
Connector ST or customerized
Notes: The values are all tested at +23ºC without connectors.

Description

Optical coupler is an optical device that combines or splits power from optical fibers. Optical

splitter divides light from a single fiber into two or more fiber channels.

Main Features

  • Low insert loss

  • Single Fusion Design

  • Uniform Power Splitting

  • Compact Size

  • High stabity and reliability

  • Standard: Rohs Compliants

Product Application

CATV system


Telecommunication systems


Digital,Hybrid and AM-Vedio System


Fiber Sensors


Monitoring system
