SFTP Cat7 Lan Cable 23AWG Bare Copper 1000Ft 305M per Reel with Grey Jacket or Customized colour

Product Categories
H-LIN INTERNATIONAL (HK) LIMITED
Contact Now

SFTP Cat7 Lan Cable 23AWG Bare Copper 1000Ft 305M per Reel with Grey Jacket or Customized colour

Brand Name : H-LIN

Model Number : HL-CAT7 SFTP

Place of Origin : Shenzhen China

Certification : CE/ROHS/IOS9001

MOQ : 50 rolls

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 80000 rolls per month

Delivery Time : Shipped within 2 weeks after payment

Packaging Details : 305m/roll, 500m/roll,, 1000ft/box, 1 roll/box, 2 boxes/caton

Number of Conductor : 8

Conductor Material : Solid Bare Copper/ According to Requestment

Insulation Material : Foam-skin PE

Insulation Diameter : 1.350±0.05 mm

Drain wire : TC 0.45mm

Rated Temperature : -20℃ to +75℃

Contact Now

SFTP Cat7 Lan Cable

Cable Data

Content of the Data Sheet
Test Standard ISO/IEC 61156-5;EN 50288-4 ,YD/T1019
Conductor Material SOLID-Bare Copper
Nom.O.D.(mm) 0.57±0.005
Insulation Material Skin-foam-skin PE
Diameter 1.350±0.05 mm
Inner Screening
Material		 Aluminum Foil Drain wire TC 0.45mm
Outer Screening
Material		 Tinned copper 0.10mm Coverage ≥30%
Material Sheath Thickness 0.55±0.05 mm
External O.D. 7.8±0.3mm
Surface Clean
Material PVC
Color According to the requires
Sheath Physical Propertie Before Aging Tensile Strength (Mpa) ≥10.0
Elongation (%) ≥125
Aging Period (℃×hrs) 100℃×24h×7d
After Aging Tensile Strength (Mpa) ≥8
Elongation (%) ≥100
Surface Printing Letter height 3.0±0.3mm
Color Black(Optional)
Print error & Space ≤±0.5%,1m
Core Color 1 White/Blue 2 White/Orange
3 White/Green 4 White/Brown
Packing Wooden Tray & Carton
length 305±1.0m
Rip-cord Yes
Electrical
Characteristics (20℃)		 Velocity of Propagation (%) 74
unbalanced-to-ground capacitance (pf/100m) max 330
DC Resistance (Ω/100m) max 9.5
DC Conductor Resistance Unbalanc (%) max
2

Features

(1)Solid OFC , Copper , CCA Conductor Allows High Performance .

(2)Fast and Reliable Connection.

(3)Well Twisted Pairs with Bright Color PE.

(4)Smooth Jacket for Easy Pulling in Tight Space

(5)Easy plug and play

(6)Color in Light Grey , Dark Grey , Blue , White or as per your requirement .

Application

CAT7 LAN cable for structured premise cabling transmits voice and video signals.

Supporting current high-band with applications, performance of up to 250MHz. Especially suitable to class F solution such as Ethernet, Fast Ethernet, Gigabit Ethernet, ATM 155, ATM622, ATM1200.

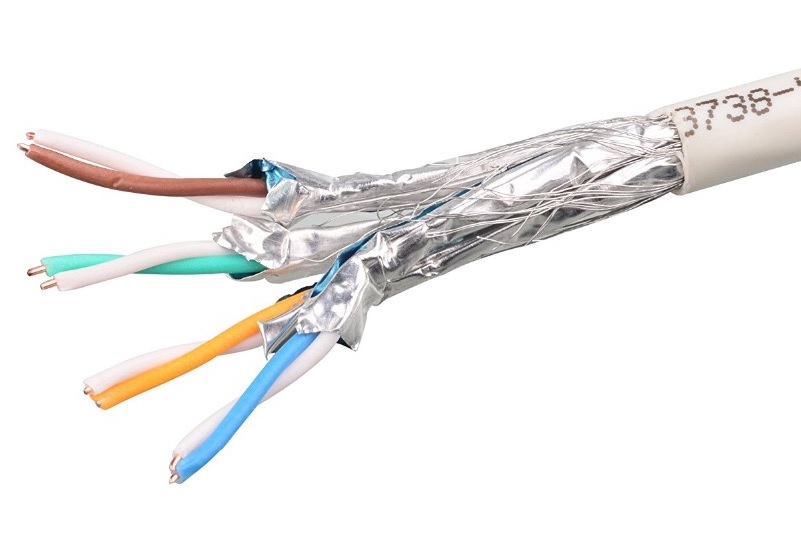

SFTP Cat7 Lan Cable 23AWG Bare Copper 1000Ft 305M per Reel with Grey Jacket or Customized colour

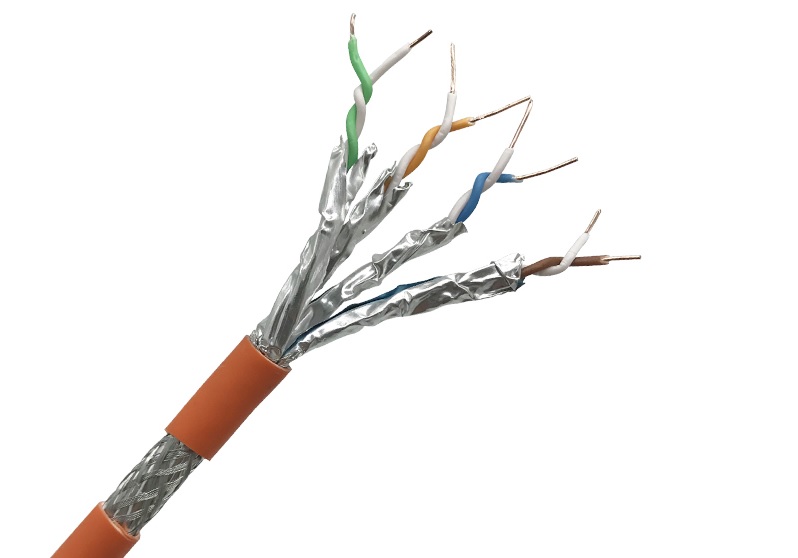

SFTP Cat7 Lan Cable 23AWG Bare Copper 1000Ft 305M per Reel with Grey Jacket or Customized colour
